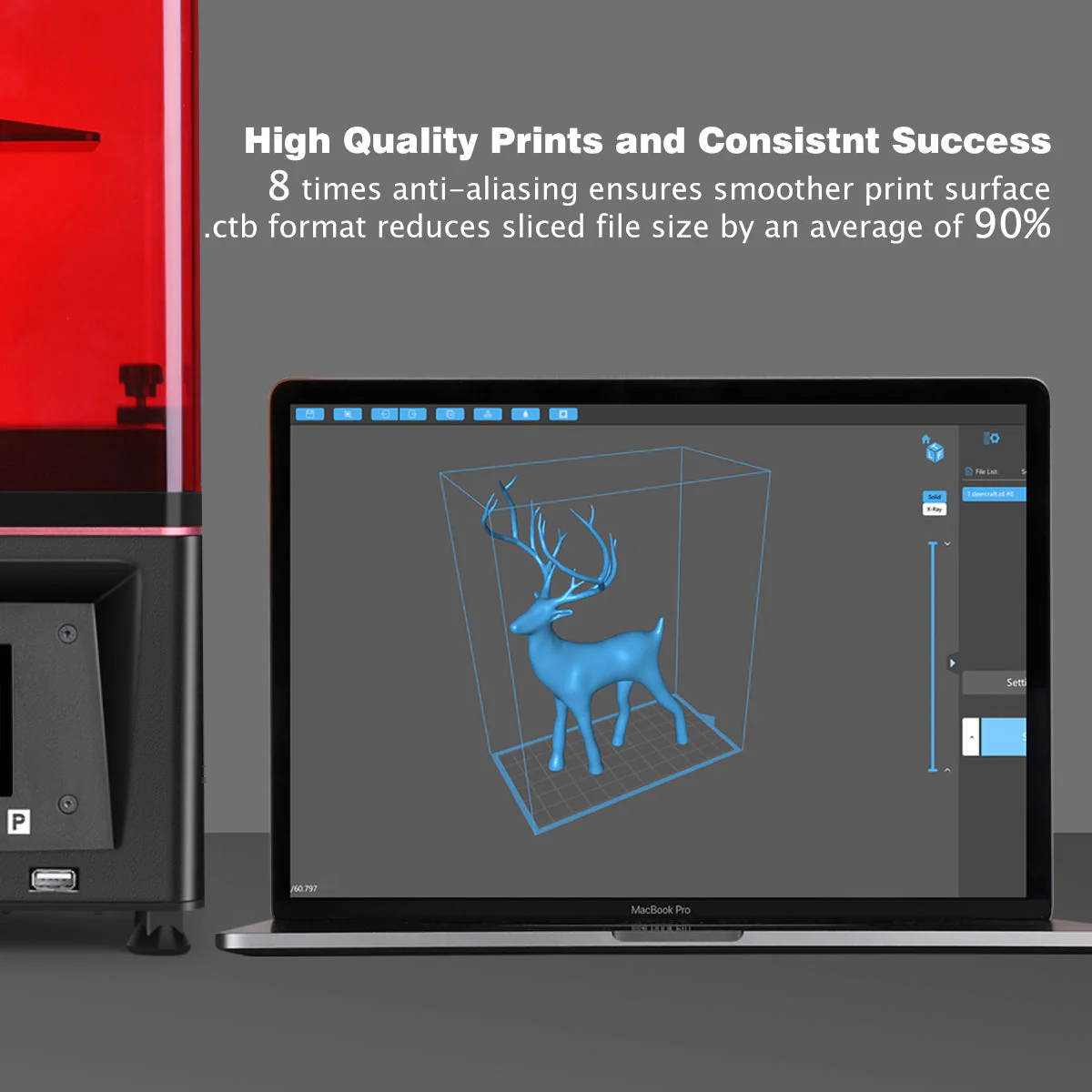

【Fast Slicing Software】ELEGOO Mars comes with the latest version of CHITUBOX Slicing Software which gives you an extraordinary user experience. CHITUBOX takes only 1 minute to slice 30Mb .stl model files while the open-sourced slicing software would take up to 10 minutes.
【Resin saving and Better Printing】CHITUBOX allows you to hollow out your model before slicing which could save your resin dramatically during the photocuring process. Equipped with 40W UV lights and using ELEGOO resin, you can get a better printing result.
【Smart and Convenient】3.5'' inch color touch screen equipped with the latest ELEGOO CHITUBOX 5.5 system makes it very easy for offline printing. The build platform with a steel ball balancing structure inside allows you to start printing within 5 minutes after assembly.
【High Precision and Resolution】ELEGOO Mars uses a 2560x1440 2K HD masking LCD to provide accurate printing with XY axis resolution of 0.00185inches / 0.047mm
【Warranty and Service】We provide a total one-year machine warranty (3-month warranty for FEP and 2K LCD consumable parts) and if you have any questions regarding product operation or software please feel free to contact us

ELEGOO has been manufacturing 3D printer components and parts since 2014 and with years of experience in 3D printing, we finally developed our own 3D printer using UV photocuring technology. We'd like to present to you our very first photocuring LCD 3D Printer- ELEGOO Mars.

Great industrial design and user-friendly system, we make ELEGOO Mars suitable for anyone to use even though you have never used a 3D printer before.

The semi-assembled printer will save your time setting up when you receive it and within 5 minutes you could start printing your first model we provided – 2 rooks, which could be easily sliced using our newly released CHITUBOX slicing software.

Mars Printer Tech. Specs

System: ChiTu L5.5 Series
Operation: 3.5 Inch Touch Screen
Slicer Software: ChiTu DLP Slicer
Connectivity: USB

Printing Technology: LED Display Photocuring

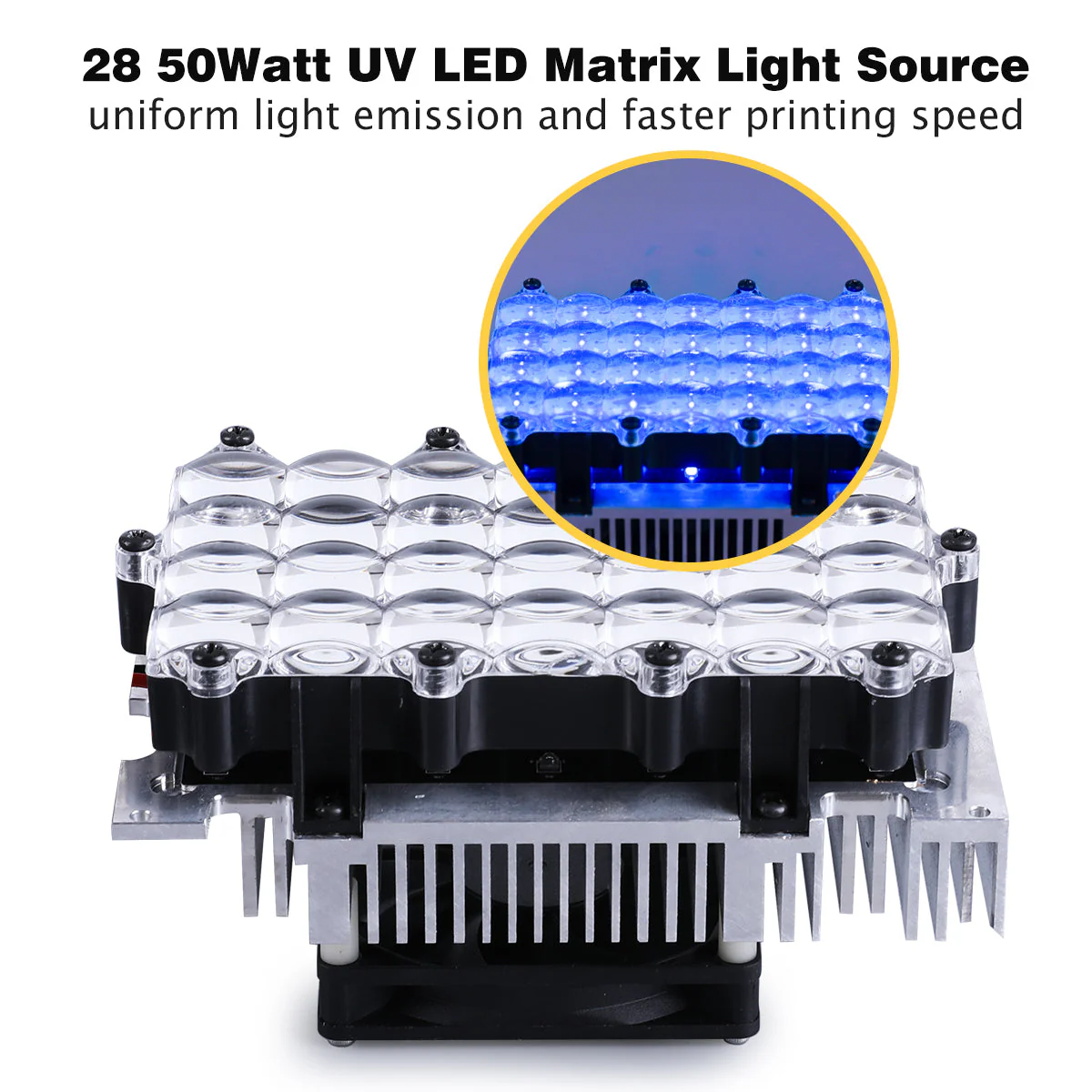

Light Source: UV Integrated Light(wavelength 405nm)
XY Resolution: 0.047mm(2560*1440)
Z-Axis Accuracy: 0.00125mm
Layer Thickness: 0.01-0.2mm
Printing Speed: 22.5mm/h
Power Requirements: 110-220V, 12V5A 60W
Build Volume: 4.72*2.68*6.1 inches

12312

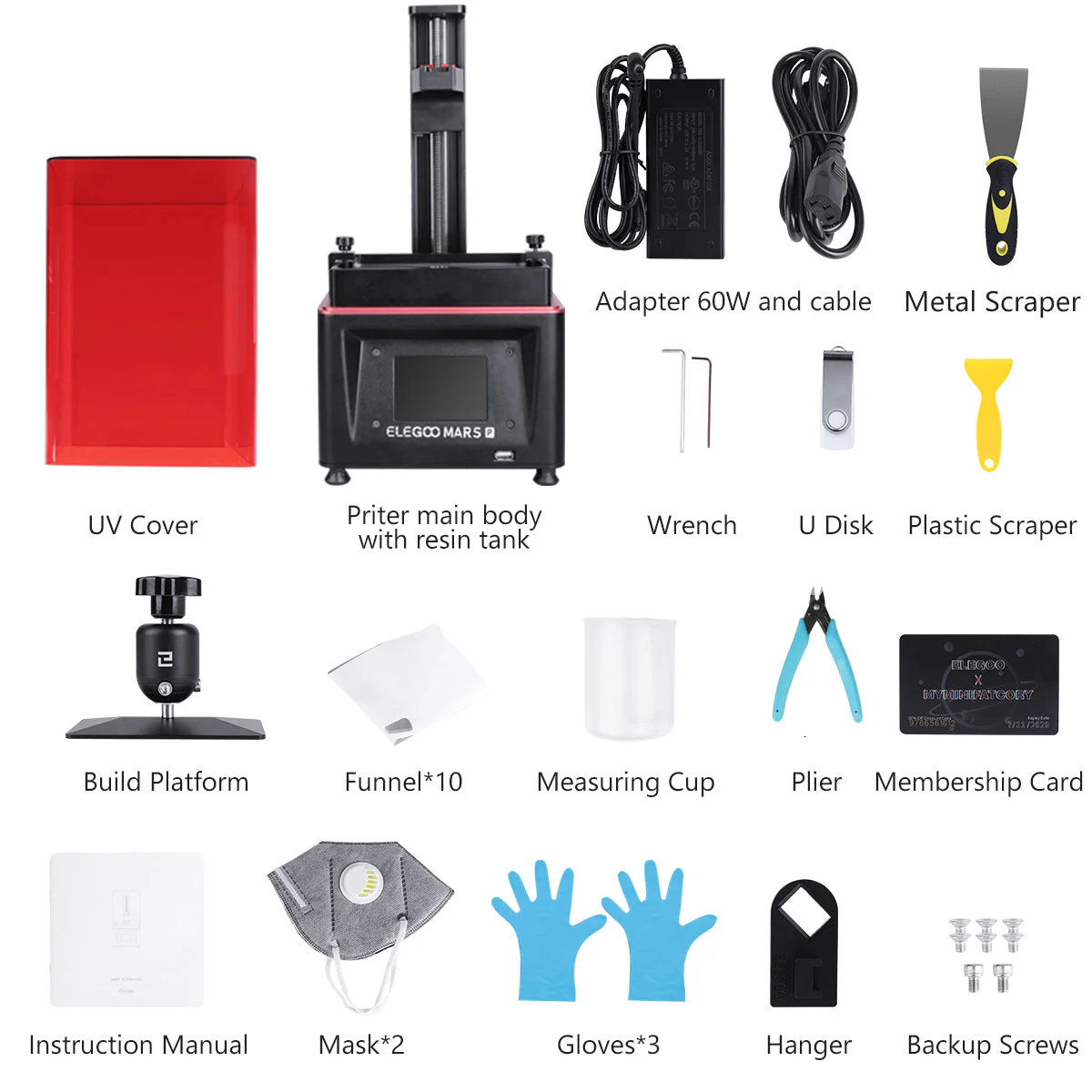

Package List
ELEGOO MARS 3D Printer comes with a simple yet well-protect package box which contains all the necessary parts you need to start a perfect printing

MARS 3D PRINTER * 1
Build Platform * 1

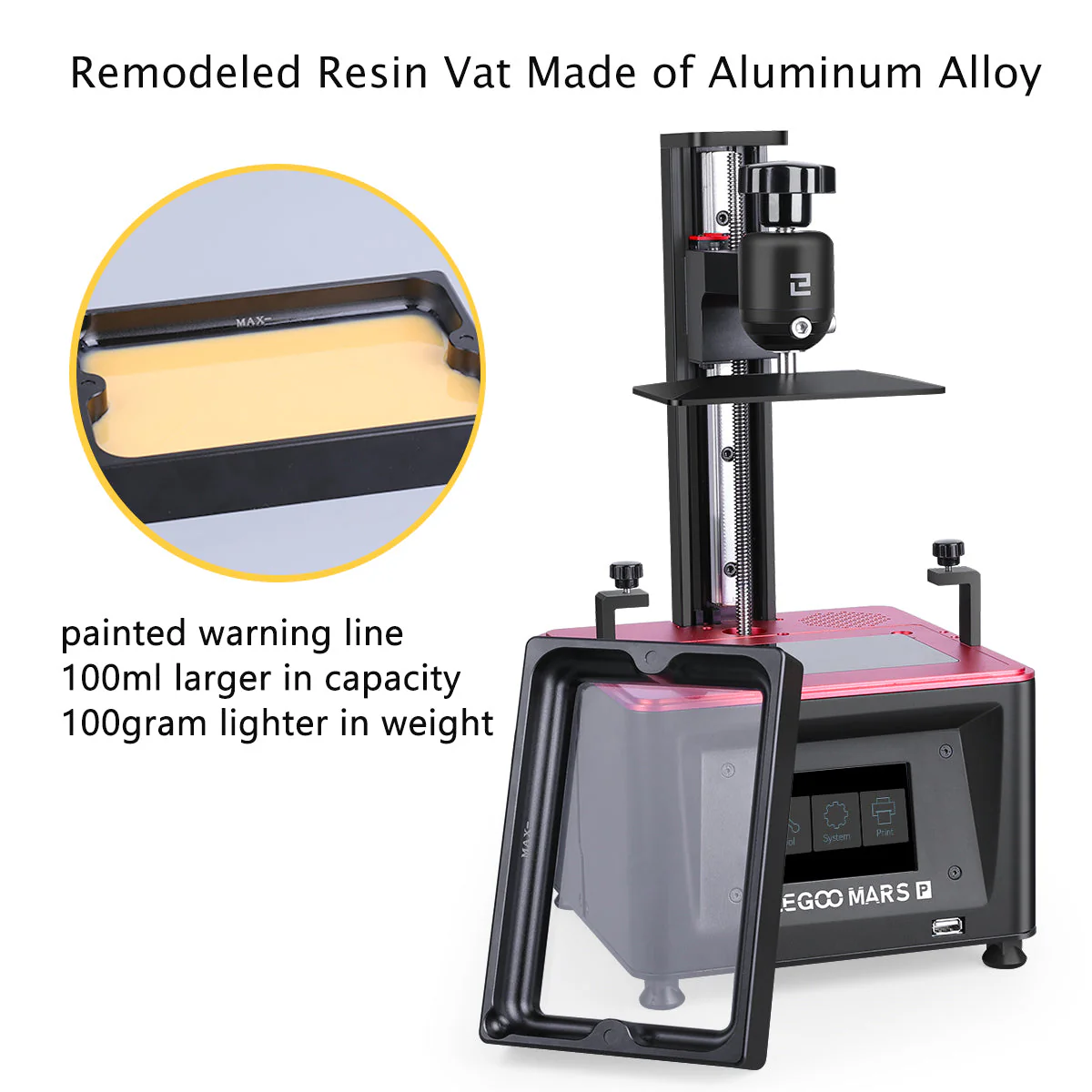

Resin Tank * 1
U Disk * 1 Tool Kit*1
Measuring Cup * 1
Mask * 1； Gloves * 3
Funnel * 10 ；Scraper * 1
UL Adapter 60W * 1
User Instruction * 1

		0
Unique Industrial Design With the unique steel ball design, you only need the Z-axis to return to zero, then lock the leveling screw to start printing.	Large Screen Large colorful 3.5 inches touch screen. You can preview the model in SD card like you saw pictures in Windows OS. Real-time display printing process.	Speed ELEGOO Mars comes with the latest version of CHITUBOX Slicing Software which gives you extraordinary user experience. CHITUBOX takes only 1 minute to slice 30Mb .stl model files while the open-sourced slicing software would take up to 10minutes. CHITUBOX allows you to hollow out your model before slicing which could save your resin dramatically during photocuring process.


Off-line Printing The ELEGOO Mars has an integrated computer board for printing directly from USB. You don't need to connect it to the computer while printing.	Precision ELEGOO Mars uses a 2560x1440 2K HD masking LCD as to provide accurate printing with XY axis resolution of 0.00185inches / 0.047mm	Sturdy Structure Semi-assembled printer allows you to start printing within 5 minutes. Sturdy structure of the all-aluminum fuselage plus acrylic cover, which is elegant and durable.

Unique Industrial Design

Large Screen

Speed

Off-line Printing

Precision

Sturdy Structure
